NKH Billet Shearing Machine: Manufactured to cut various sizes of billets and round bars.

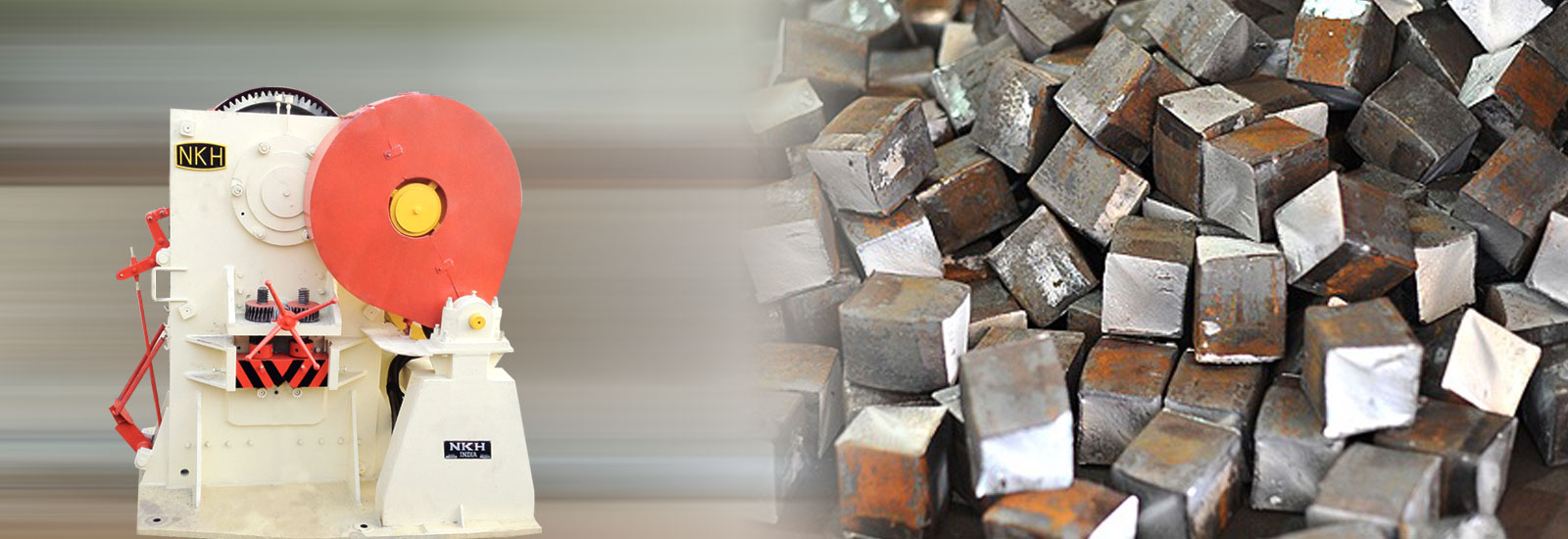

Billet Shearing Machine
Billet Shearing Machine
Our Billet Shearing Machines deliver perfect cuts to ensure both perfect square and cleanliness of the shearing surface. Our "NKH" technology allows a precise treatment to alloy & mild steel. The frames of our machines are specific to the size and made from high-quality materials. Due to our excellent workmanship and finish, our machines deliver excellent output.
Features
- These machines are manufactured to cut various sizes of billets and round bars.
- The body is made from M.S. (plates) fabrication which can cut alloy steel and mild steel billets, round bars.
- The capacity of these machines varies from 50mm to 200mm.
- Four or six gears are provided to facilitate smooth operations with small power.
Technical Specifications
| Capacity in inches Capacity in mm |
2″ 10-50 |
3″ 50-75 |
4″ 75-100 |
5″ 125 |
6″ 150 |
8″ 200 |
|---|---|---|---|---|---|---|
| Main Gear | 32″ | 42″ | 42″ | 42″ | 50″ | 72″ |
| Main Shaft | 6″ | 9″ | 10″ | 11″ | 13″ | 18″ |
| No. of Pcs per Minute | 30 | 25 | 20 | 17 | 14 | 10 |
| Working Height | 32″ | 32″ | 32″ | 36″ | 36″ | 40″ |
| Appox.Weight | 4 Ton | 5½ Ton | 8 Ton | 9 Ton | 12 Ton | 18 Ton |
| Height in Feet | 5½ | 6½ | 7½ | 8½ | 9½ | 10 |
| Fly Wheel Dia (in inches) | 30 | 42 | 42 | 42 | 50 | 66 |
| Electric Motor H.P. | 10 | 20 | 25 | 40 | 50 | 100 |
| R.P.M. | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
- Specifications are subject to change without prior notice.
- All data is a proposal and can be adjusted according to customer’s requirements.
