Horizontal Bar Cutting Machine
Horizontal Bar Cutting Machine

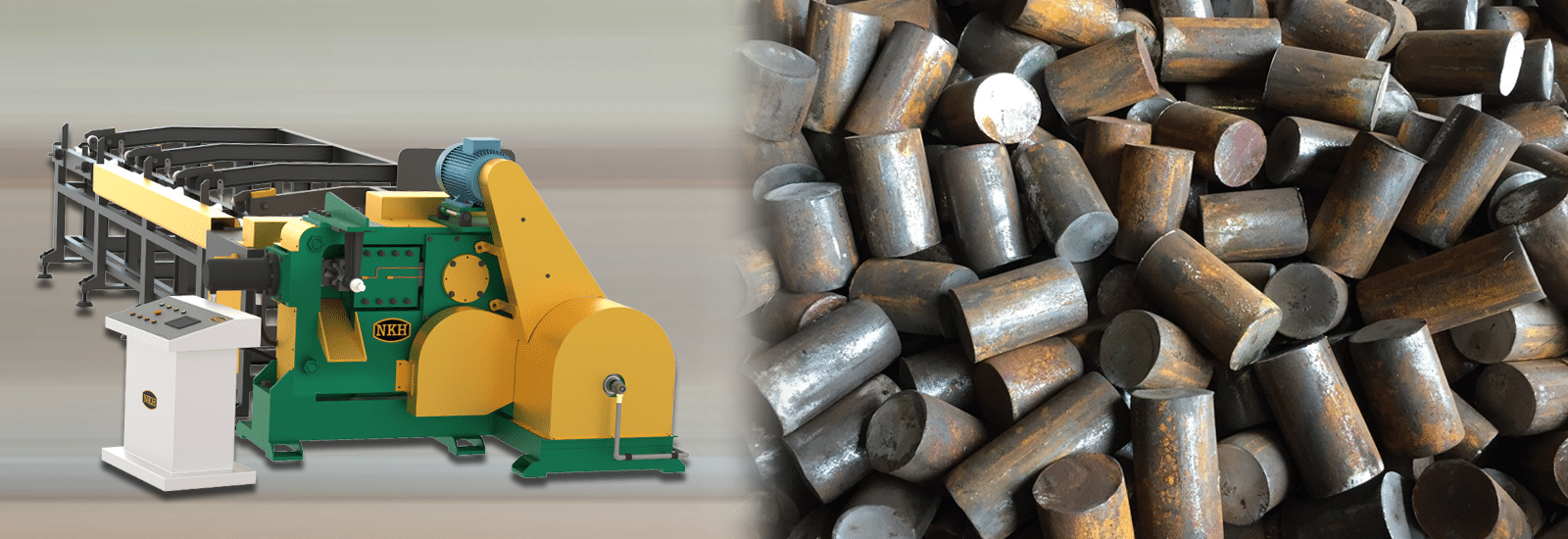

The NKH Horizontal Bar Cutting Machine is designed for high-precision cutting of round and square bars using an advanced restrained shearing mechanism with both radial and axial constraints. Engineered with a heavy-duty fabricated steel structure, the machine delivers superior rigidity, operational stability and long service life even in demanding industrial environments.
This machine is ideal for both cold cutting and hot cutting applications and is capable of processing ferrous and non-ferrous metals with high accuracy. The precision cutting system produces clean and smooth end faces with consistent length and weight control, making it suitable for automated forging and machining operations.
Advanced Cutting Technology
The NKH Horizontal Bar Cutting Machine uses a restrained shearing mechanism that minimizes material deformation and ensures accurate cuts. The integrated gear transmission system provides smooth, low-noise and reliable performance, even during continuous production cycles.
Automation and Control System
Equipped with a PLC-based control system and touch-screen interface, the machine supports:- Automatic feeding
- Automatic shearing
- Automatic counting
- Consistent production control
This automation improves productivity, reduces manual intervention and ensures repeatable cutting accuracy.
Key Features and Benefits of Horizontal Bar Cutting Machine
- High-precision restrained shearing technology
- Heavy-duty fabricated steel body for durability and stability
- Suitable for hot and cold cutting operations
- Processes both ferrous and non-ferrous metals
- Clean end faces with accurate weight and length control
- Smooth and low-noise gear transmission system
- PLC and touch-screen controlled automation
- Low maintenance and easy operation
- Designed for continuous industrial production
Applications
The NKH Horizontal Bar Cutting Machine is widely used in:
- Forging industries
- Bearing manufacturing plants
- Gear manufacturing units
- Standard parts production
- Metal processing workshops
It is an ideal solution for industries requiring reliable, accurate and high-speed cutting of round & square bars.
Why Choose NKH Horizontal Bar Cutting Machine?
NKH Horizontal Bar Cutting Machines are manufactured using premium-quality materials and precision engineering standards. Each machine is built to deliver long-term performance, operational safety and consistent cutting quality.
With advanced automation, robust construction and proven reliability, NKH provides a cost-effective and efficient cutting solution for modern forging and metalworking industries.
Horizontal Bar Cutting Machine Features
- Heavy-duty fabricated steel body for high rigidity, stability and long service life
- High-precision restrained shearing system for clean cuts and consistent accuracy
- Smooth, low-noise gear transmission for reliable operation
- Suitable for cold and hot cutting of ferrous and non-ferrous bars
- PLC-based control with touch-screen for automatic feeding, shearing and counting
Technical Specifications
| Parameters | JQ-W40 | JQ-W60 | JQ-W80 | JQ-W100 | JQ-W130 |
|---|---|---|---|---|---|
| Maximum Shearing Force (kN) | 160T | 250T | 315T | 500T | 630T |
| Maximum Shearing Diameter (mm) | 30 | 50 | 70 | 90 | 120 |
| Shearing Speed (cuts/min) | 50 | 30 | 22 | 20 | 13 |
| Material Stopper Range (mm) | 20–500 | 40–500 | 50–500 | 55–500 | 60–500 |
| Cut Surface Inclination (mm) | ≤1.5 | ≤1.5 | ≤2 | ≤2 | ≤2 |
| Cut Surface Roundness (mm) | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 |
| Air Pressure (MPa/Bar) | 0.7/7.0 | 0.7/7.0 | 0.7/7.0 | 0.7/7.0 | 0.7/7.0 |
| Main Motor Power (kW/Hp) | 5.5-4/7.5 | 15-4/20 | 22-6/30 | 30-6/40 | 45-6/60 |
| Feeder Motor Power (kW/Hp) | 1.5/2.0 | 1.5/2.0 | 1.5/2.0 | 1.5/2.0 | 2.2/2.0 |
| Automatic Feeder Dimensions (mm) | 1200×6000×1000 | 1400×6000×1200 | 1600×6000×1500 | 1800×6000×1500 | 2200×6000×1800 |
- Specifications are subject to change without prior notice.
- All data is proposal and can be adjusted according to customer’s requirements.
